Item 7023543 has must read information.
: **PLEASE BE SURE TO READ ENTIRE CONSULT FACTORY AS IT GIVES DIRECTION TO MULTIPLE POINTS OF SUBJECT PART** POINT # 1: Per changes made by the vendor to the proportional valve please verify the type of coil fitted to this proportional valve before ordering. If your proportional valve is already fitted with a Deutsch style connection coil this consult factory does not apply. If your proportional valve is fitted with a DIN style connection coil, you must order the following parts for proper service replacement: Proportional Valve(new style) p/n - 7023543(will not work with old DIN style coil) qty. 1 Coil p/n - 70000799(Deutsch style connection) qty. 1 Plug p/n - 4460891 qty. 1 Pin p/n - 4460465 qty. 2 If wiring instruction is needed for the new coil please refer to the ES electrical schematic located in your Service and Maintenance Manual and/or Illustrated Parts Manual. POINT #2: When ordering this proportional valve please also print a copy of the instruction sheet p/n 3121573 provided below. This instruct
: 3121573_ES Manual Descent Valve Cable Routing_Final PDF coil_DIN vs Deutsch
: 3121573_ES Manual Descent Valve Cable Routing_Final PDF coil_DIN vs Deutsch

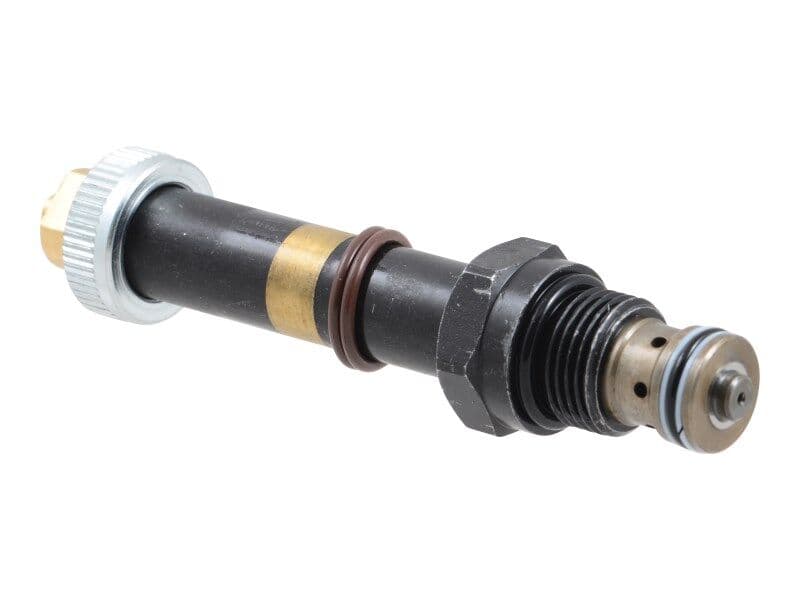

VALVE, PROPORTIONAL W/NUT
$300.00
:
- :
- 7023543
:
JLG Parts Proportional Valve with Nut for use on JLG ES Series Scissor MEWP(Mobile Elevated Work Platform) Machines. This valve is used on the lift cylinder of the machine and controls the downward hydraulic function of the cylinder. The Valve can also be manually activated incase of emergencies to lower the platform. Model Use: 1930ES, 2030ES, 2630ES, 2632ES, 2646ES, 3246ES. Please ensure proper model and serial break before parts purchase.
:
: 5 : 1.25 : 1.25 : 0.456
- :
- EA
- :
- :
