Item 113.07.007.01 has must read information.

Comentarios: Per the vendor this intermediate brake disc is no longer available and does not have a direct replacement. If replacing on rear axle JLG p/n 91563283 before DANA axle s/n KITA737006 you must purchase all the following parts for proper service replacement. JLG p/n 70021611 - Oring (qty. 2) JLG p/n 70021610 - Oring (qty. 2) JLG p/n 70021604 - Bolt (qty. 40) JLG p/n 91514165 - Tube (qty. 6) JLG p/n 7029785 - Adjusting Bolt (qty. 6) JLG p/n 70021608 - Piston (qty. 2) JLG p/n 70021606 - Spacer (qty. 2) JLG p/n 70021609 - Backup Ring (qty. 2) JLG p/n 91514160 - Adjusting Bolt (qty. 6) JLG p/n 70021613 - Pilot Bolt (qty. 2) JLG p/n 91514159 - Spring (qty. 6) JLG p/n 70021612 - Backup Ring (qty. 2) JLG p/n 70022141 - Intermediate Cover (qty. 2) JLG p/n 70022142 - Locking Plate (qty. 2) JLG p/n 70021943 - Axle Case (qty. 2) JLG p/n 70021602 - Double Universal Joint (qty. 2) **Please note both side of your axle must be updated at the same time. Once all updates have been made service parts can them be replace on

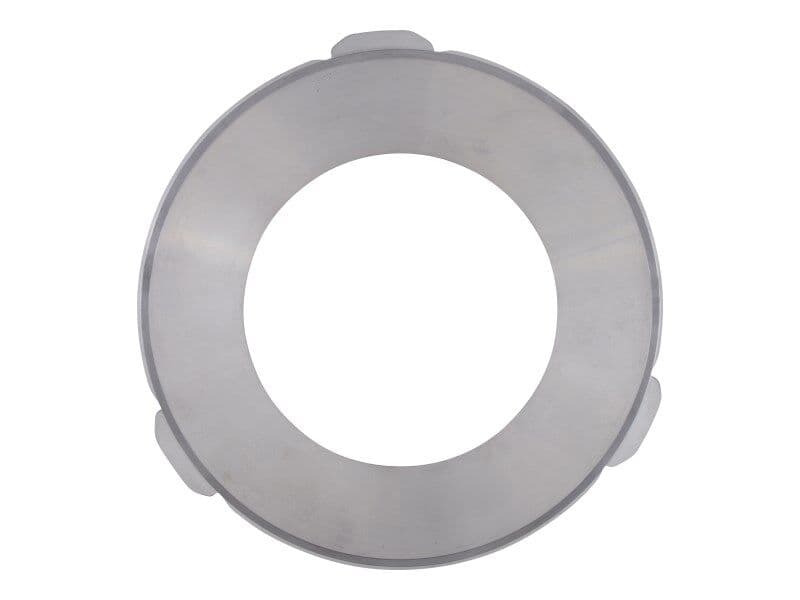

DISC, INTERMEDIATE BRAKE
DISC, INTERMEDIATE BRAKE

DN-DISC, INTERMEDIATE BRAKE

Referencia: 113.07.007.01
Artículo neto
Dimensiones del envío
Longitud: 11
Ancho: 11.5
Altura: 1.1
Peso: 7.3
Unidad de medida
EA
Consultar en fábrica
Tipo de envío
Paquete

Piezas relacionadas

OLE JLG Default Image Missing

CYL, BRAKE

#1681818
Cant.:

OLE JLG Default Image Missing

BRAKE, DRIVE MOTOR BRAKE

#PTNSPE617
Cant.:

7041312

KU-ROTOR, DISTRIBUTOR

#KU12581-6865-0
Cant.:

7041312

KU-ROTOR, DIST

#KU1258168650
Cant.:
