Item 113.07.007.01 has must read information.

Comments: Per the vendor this intermediate brake disc is no longer available and does not have a direct replacement. If replacing on rear axle JLG p/n 91563283 before DANA axle s/n KITA737006 you must purchase all the following parts for proper service replacement. JLG p/n 70021611 - Oring (qty. 2) JLG p/n 70021610 - Oring (qty. 2) JLG p/n 70021604 - Bolt (qty. 40) JLG p/n 91514165 - Tube (qty. 6) JLG p/n 7029785 - Adjusting Bolt (qty. 6) JLG p/n 70021608 - Piston (qty. 2) JLG p/n 70021606 - Spacer (qty. 2) JLG p/n 70021609 - Backup Ring (qty. 2) JLG p/n 91514160 - Adjusting Bolt (qty. 6) JLG p/n 70021613 - Pilot Bolt (qty. 2) JLG p/n 91514159 - Spring (qty. 6) JLG p/n 70021612 - Backup Ring (qty. 2) JLG p/n 70022141 - Intermediate Cover (qty. 2) JLG p/n 70022142 - Locking Plate (qty. 2) JLG p/n 70021943 - Axle Case (qty. 2) JLG p/n 70021602 - Double Universal Joint (qty. 2) **Please note both side of your axle must be updated at the same time. Once all updates have been made service parts can them be replace on

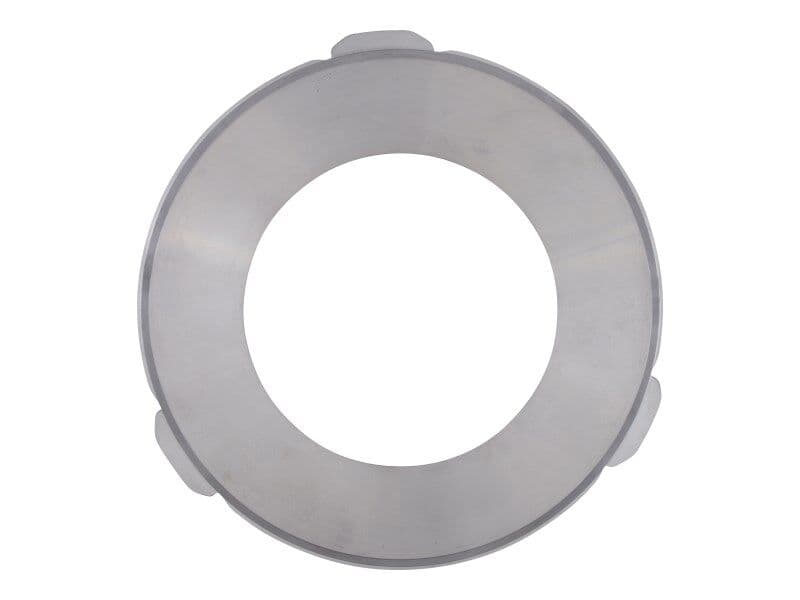

DISC, INTERMEDIATE BRAKE
DISC, INTERMEDIATE BRAKE

DN-DISC, INTERMEDIATE BRAKE

Item Number: 113.07.007.01
Net Item
Yes
Shipping Dimensions
Length: 11
Width: 11.5
Height: 1.1
Weight: 7.3
Unit of Measure
EA
Consult Factory
Yes
Shipping Type
Parcel
