Item 7150703 has must read information.

Commentaire: PN 7150702 and 7150703 were obsoleted by the manufacturer. A replaceme nt is available but lights must be replaced as a pair. Please order 1 0 01244594 (LH) and 1001244593 (RH) and place pins in the six-pin elec tr ical connector according to the instructions below. (Failure to pin co nnectors properly will lead to several light functions getting mix ed u p). Right hand headlight, connector X505: (1.) Remove the red wir e fro m cavity 1 and replace it with the green wire from cavity 3. (2. ) Remo ve the white wire from cavity 2 and replace it with the black w ire fro m cavity 6. (3.) Insert the white wire into cavity 6. (4.) Ins ert the red wire into cavity 6. (5.) Reassemble the connector locks an d seals. Left hand headlight, connector X503: (1.) Remove the red wire from cav ity 1 and replace it with the orange wire from cavity 3. (2. ) Remove t he white wire from cavity 2 and replace it with the black w ire from ca vity 6. (3.) Insert the white wire into cavity 3. (4.) Ins ert the red wire into cavity 6. (5.) Reassemble the connector locks an d seals.
Le prix n’est pas défini pour cet élément. Veuillez contacter le service clientèle et lui communiquer votre modèle et le numéro de série pour obtenir de plus amples informations.

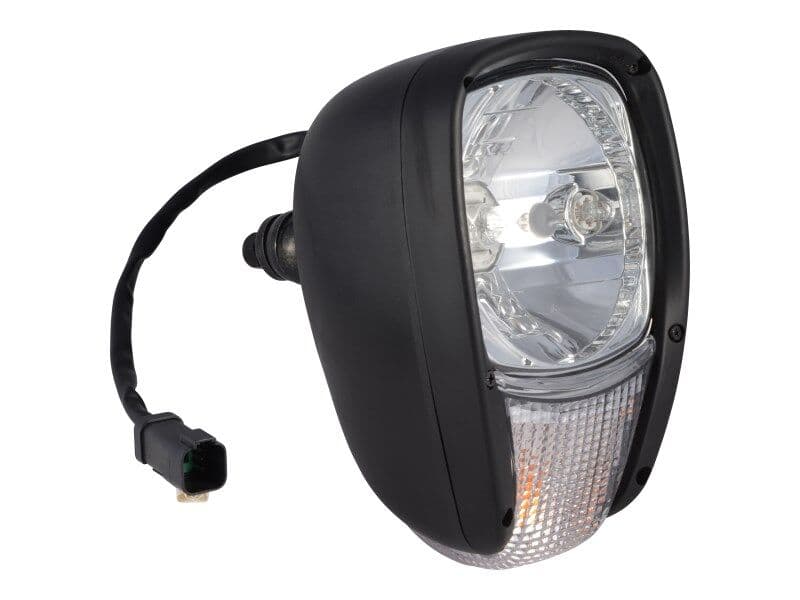

LIGHT, HEAD ASSY RH

N° de référence: 7150703
Article net
Non
Dimensions de livraison
Longueur: 10.3
Largeur: 10.5
Hauteur: 10.7
Poids: 3.6
Unité de mesure
EA
Consulter l’usine
Oui
Type de livraison
Colis
