Item 7150703 has must read information.
Comentarios: PN 7150702 and 7150703 were obsoleted by the manufacturer. A replaceme nt is available but lights must be replaced as a pair. Please order 1 0 01244594 (LH) and 1001244593 (RH) and place pins in the six-pin elec tr ical connector according to the instructions below. (Failure to pin co nnectors properly will lead to several light functions getting mix ed u p). Right hand headlight, connector X505: (1.) Remove the red wir e fro m cavity 1 and replace it with the green wire from cavity 3. (2. ) Remo ve the white wire from cavity 2 and replace it with the black w ire fro m cavity 6. (3.) Insert the white wire into cavity 6. (4.) Ins ert the red wire into cavity 6. (5.) Reassemble the connector locks an d seals. Left hand headlight, connector X503: (1.) Remove the red wire from cav ity 1 and replace it with the orange wire from cavity 3. (2. ) Remove t he white wire from cavity 2 and replace it with the black w ire from ca vity 6. (3.) Insert the white wire into cavity 3. (4.) Ins ert the red wire into cavity 6. (5.) Reassemble the connector locks an d seals.
No se ha asignado un precio para este artículo. Póngase en contacto con el servicio de atención al cliente e indique su modelo y su número de serie para obtener más información.

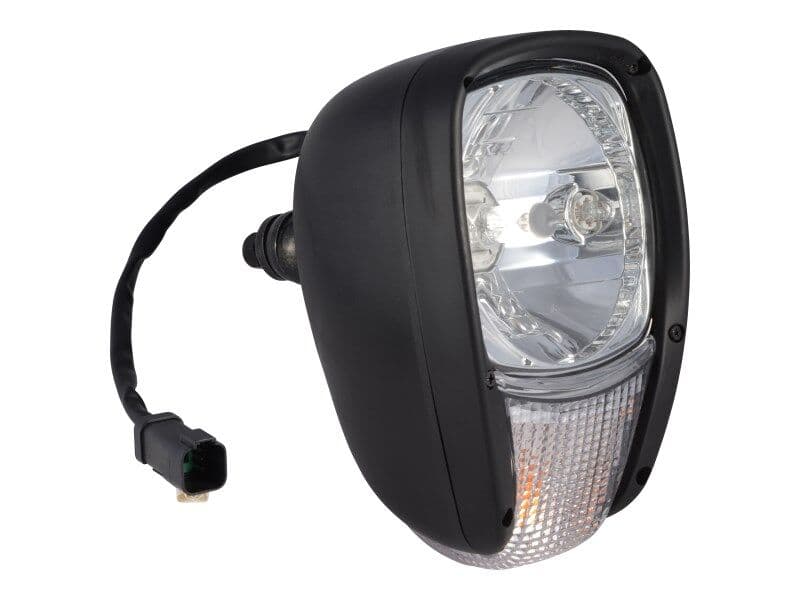

LIGHT, HEAD ASSY RH
Referencia: 7150703
- Artículo neto
- No
- Dimensiones del envío
- Longitud: 10.3
Ancho: 10.5
Altura: 10.7
Peso: 3.6 - Unidad de medida
- EA
- Consultar en fábrica
- Sí
- Tipo de envío
- Paquete
