Item 3841517S has must read information.
Comments: STEER RELIEF PRESSURE MUST BE RE-SET TO 1400 PSI IF USED ON JLG MODELS E/M400AJPn, OK AS IS ON ALL OTHER MODELS
Attachments: 3841517s label3841517s_email 10-10-07
Attachments: 3841517s label3841517s_email 10-10-07

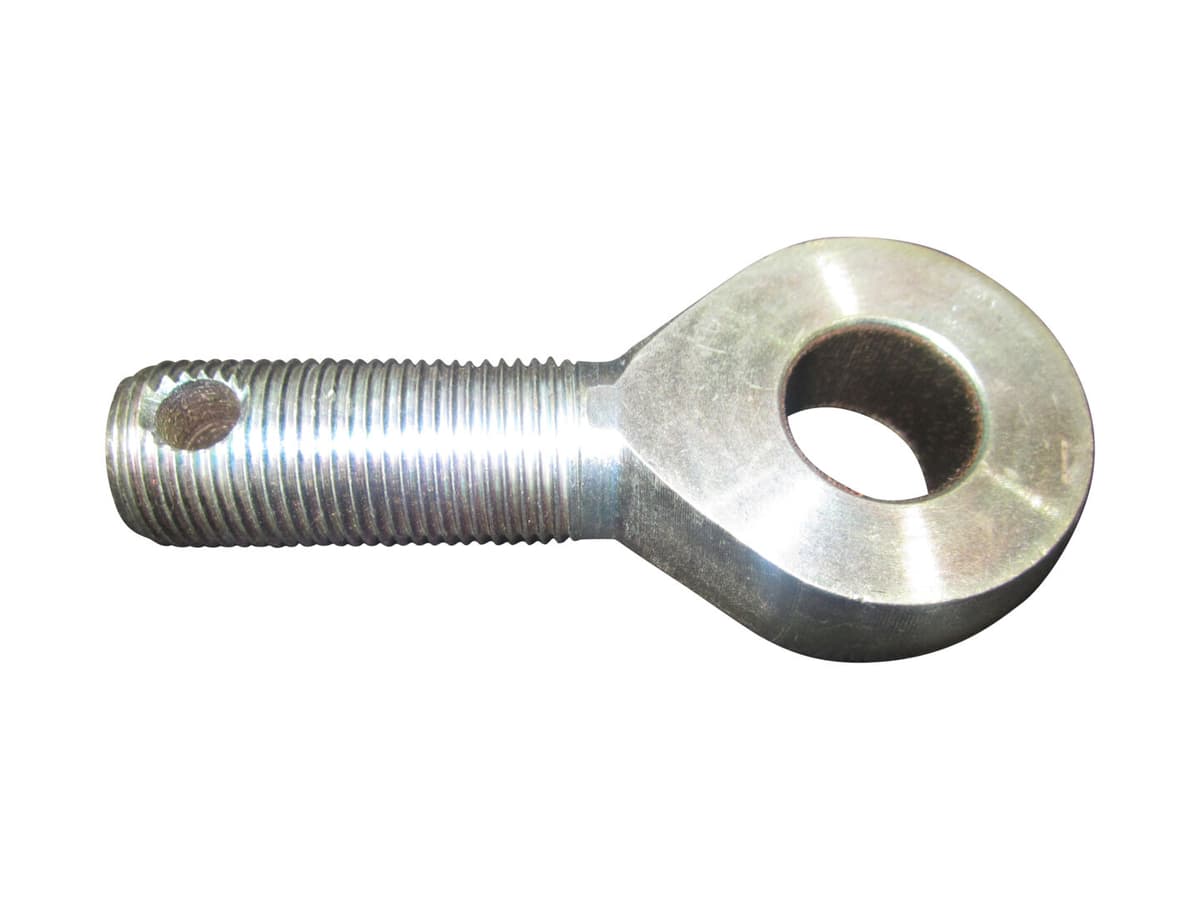

ROD,TIE ROD END SELF LUBRICATI
Item Number: 3841517S
$33.55
- Net Item
- Yes
- Item Description
- JLG Parts Self Lubricateing Rod End Joint/Bearing Assembly for use on various JLG 400 series, Scissor lifts, and select vertical machines. Rod end screws into steering cylinder and steering link to control steer functions, as well as select axle lockout cylinders. 2.844" - 2.906" length from center to tread end with .75" inside joint diameter. Tread lenght 1.688" - 1.812" with .75 x 16 UNF - 2A threads. Locking nut and bolt/pin must be purchased seperately. Ensure assembly and serial range for proper purchase.
- Shipping Dimensions
- Length: 3.5
Width: 1.5
Height: 0.5
Weight: 0.6 - Unit of Measure
- EA
- Consult Factory
- Yes
- Shipping Type
- Parcel
