Item 3841517S has must read information.

Anmerkungen: STEER RELIEF PRESSURE MUST BE RE-SET TO 1400 PSI IF USED ON JLG MODELS E/M400AJPn, OK AS IS ON ALL OTHER MODELS
Anbaugeräte: 3841517s label 3841517s_email 10-10-07

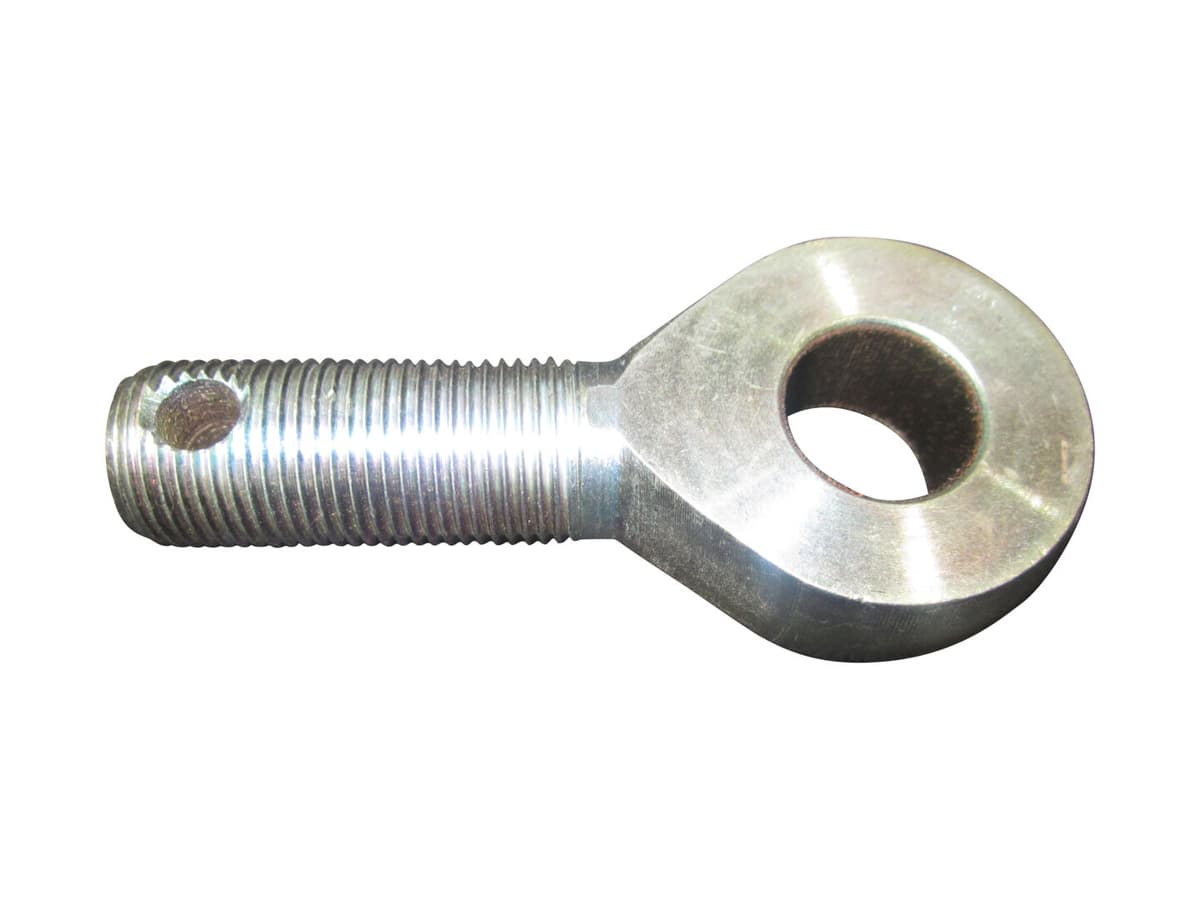

ROD,TIE ROD END SELF LUBRICATI

Artikelnummer: 3841517S

$33.55

Nettoposten
Ja
Artikelbeschreibung
JLG Parts Self Lubricateing Rod End Joint/Bearing Assembly for use on various JLG 400 series, Scissor lifts, and select vertical machines. Rod end screws into steering cylinder and steering link to control steer functions, as well as select axle lockout cylinders. 2.844" - 2.906" length from center to tread end with .75" inside joint diameter. Tread lenght 1.688" - 1.812" with .75 x 16 UNF - 2A threads. Locking nut and bolt/pin must be purchased seperately. Ensure assembly and serial range for proper purchase.
Versandabmessungen
Länge: 3.5 Breite: 1.5 Höhe: 0.5 Gewicht: 0.6
Maßeinheit
EA
Kontaktaufnahme zum Werk
Ja
Versandart
Paket
