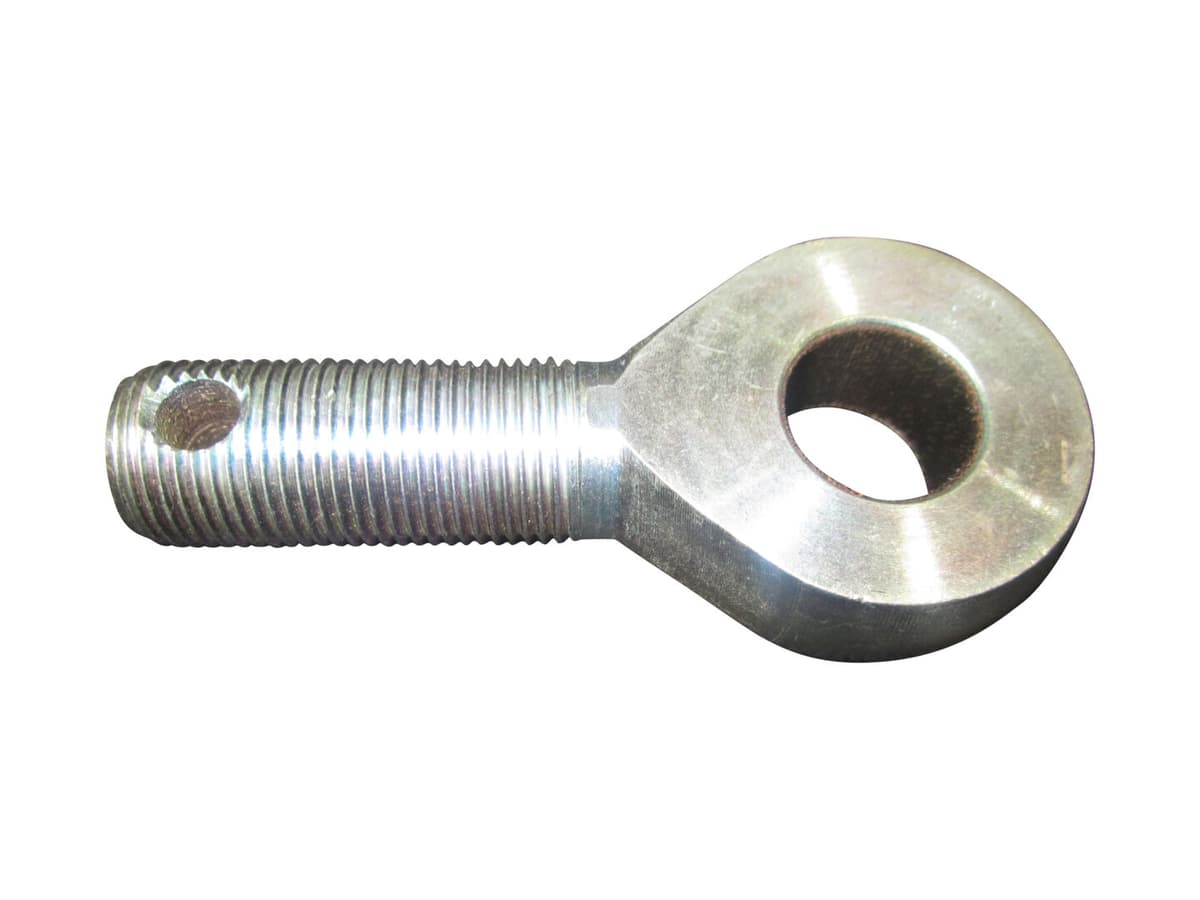

ROD,TIE ROD END SELF LUBRICATI

Net Item: No

Item Number:
3841517S

Item Description:

JLG Parts Self Lubricateing Rod End Joint/Bearing Assembly for use on various JLG 400 series, Scissor lifts, and select vertical machines. Rod end screws into steering cylinder and steering link to control steer functions, as well as select axle lockout cylinders. 2.844" - 2.906" length from center to tread end with .75" inside joint diameter. Tread lenght 1.688" - 1.812" with .75 x 16 UNF - 2A threads. Locking nut and bolt/pin must be purchased seperately. Ensure assembly and serial range for proper purchase.

Shipping Dimensions:
Length: 3.5  Width: 1.5  Height: 0.5  Weight: 0.53

Unit of Measure:
EA
Consult Factory:
Yes
Shipping Type:
Parcel
